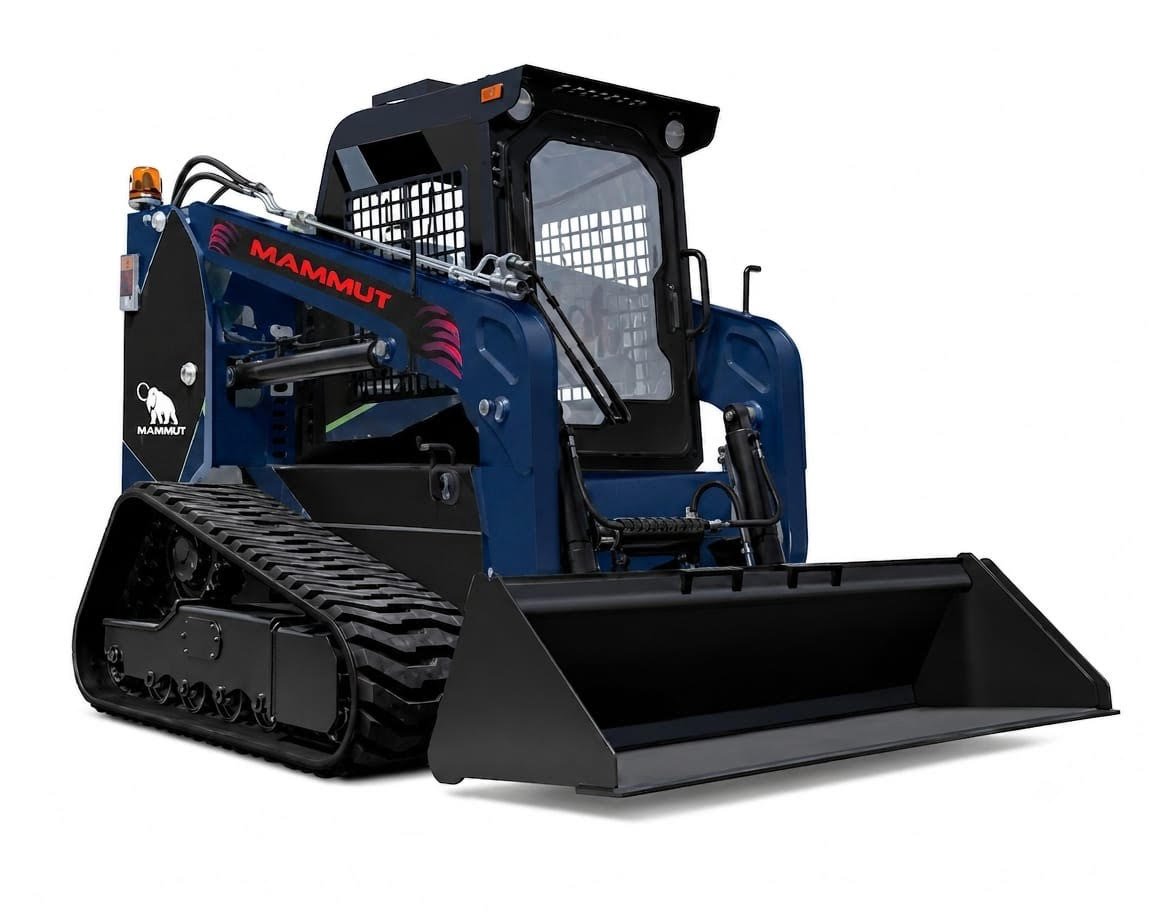

OJ100-C
Technical Specifications
EngineCUMMINS
Operating Load1200 kg / 2645.54 lb
Max. Speed12 km/h / 7.46 mph
Fuel Tank Capacity90 L / 23.78 US gal
Tire (Track) Model320 × 84
Rated Power100 HP
Dead Weight4800 kg / 10582.18 lb
Self Weight Bucket4500 kg / 9920.79 lb
Bucket Capacity0.55 m³ / 19.42 ft³
Dumping Height2450 mm / 96.46 in
Dumping Reach700 mm / 27.56 in
Tread Width1654 mm / 65.12 in
Hydraulic High Flow140 L/min
Hydraulic Low Flow88 L/min
Standard Features
